Abstract renderer implementation. More...

#include <mitsuba/hw/renderer.h>

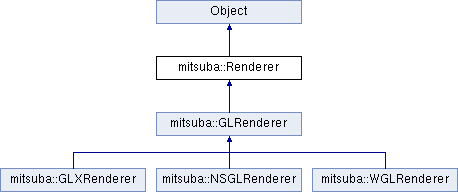

Inheritance diagram for mitsuba::Renderer:

Classes
struct	ShaderRecord

Public Types
enum	EBlendMode { EBlendNone = 0, EBlendAlpha, EBlendAdditive }

enum	ECullMode { ECullNone = 0, ECullFront, ECullBack }
	Possible culling modes. More...

enum	EMatrixType { EProjection = 0, EModelView }
	Matrices of the fixed function pipeline. More...

typedef std::pair< const GPUGeometry *, Matrix4x4 >	TransformedGPUGeometry

Public Member Functions
const RendererCapabilities *	getCapabilities () const
	Return the renderer's capabilities. More...

virtual void	init (Device device, Renderer other=NULL)

virtual void	reconfigure (const Device *device)=0
	Reconfigure the renderer for a certain device (e.g. after a resize event) More...

virtual void	shutdown ()
	Shut the renderer down. More...

virtual GPUTexture *	createGPUTexture (const std::string &name, Bitmap *bitmap=NULL)=0
	Create a new GPU texture object. More...

virtual GPUProgram *	createGPUProgram (const std::string &name)=0
	Create a new GPU program object. More...

virtual GPUSync *	createGPUSync ()=0
	Create a new synchronization object. More...

virtual void	clear ()=0
	Clear the viewport. More...

virtual void	setCamera (const ProjectiveCamera *pCamera, const Point2 &apertureSample=Point2(0.5f), const Point2 &aaSample=Point2(0.5f), Float timeSample=0.5f)=0
	Configure the camera. More...

virtual void	setCamera (const Matrix4x4 &proj, const Matrix4x4 &view)=0
	Configure the camera (manual) More...

virtual void	setMatrix (EMatrixType type, const Matrix4x4 &value)=0
	Directly set the modelview or projection matrix. More...

virtual Matrix4x4	getMatrix (EMatrixType type) const =0
	Fetch the currently set modelview or projection matrix. More...

virtual void	beginDrawingMeshes (bool transmitOnlyPositions=false)=0
	Set up the renderer for drawing triangle geometry. More...

virtual void	drawMesh (const TriMesh *shape)=0
	Send a triangle mesh to the renderer. More...

virtual void	drawMesh (const GPUGeometry *geo)=0
	Send a triangle mesh to the renderer. More...

virtual void	endDrawingMeshes ()=0
	Clean up the renderer after drawing triangle geometry. More...

virtual void	drawAll (const std::vector< TransformedGPUGeometry > &geo)=0
	Quickly draw all geometry that has been registered with the renderer. More...

virtual void	blitTexture (const GPUTexture *texture, bool flipVertically=false, bool centerHoriz=true, bool centerVert=true, const Vector2i &offset=Vector2i(0, 0))=0
	Draw a quad using the given texture. More...

virtual void	blitQuad (bool flipVertically)=0
	Blit a screen-sized quad. More...

virtual void	drawText (const Point2i &pos, const Font *font, const std::string &text)=0

virtual void	setPointSize (Float size)=0
	Set the size of point primitives. More...

virtual void	drawPoint (const Point &p)=0
	Draw a point. More...

virtual void	drawLine (const Point &a, const Point &b)=0
	Draw a line between two specified points. More...

virtual void	drawPoint (const Point2 &p)=0
	Draw a point (2D) More...

virtual void	drawPoint (const Point2i &p)=0
	Draw a point (2D, integer coordinates) More...

virtual void	drawLine (const Point2 &a, const Point2 &b)=0
	Draw a line between two specified points (2D) More...

virtual void	drawLine (const Point2i &a, const Point2i &b)=0
	Draw a line between two specified points (2D, integer coordinates) More...

virtual void	drawRectangle (const Point2 &a, const Point2 &b)=0
	Draw a rectangle between two specified points (2D) More...

virtual void	drawRectangle (const Point2i &a, const Point2i &b)=0
	Draw a rectangle between two specified points (2D, integer coordinates) More...

virtual void	drawFilledRectangle (const Point2 &a, const Point2 &b)=0
	Draw a filled rectangle between two specified points (2D) More...

virtual void	drawFilledRectangle (const Point2i &a, const Point2i &b)=0
	Draw a filled rectangle between two specified points (2D, integer coordinates) More...

virtual void	drawEllipse (const Point &center, const Vector &axis1, const Vector &axis2)=0
	Draw an ellipse with the specified center and axes. More...

virtual void	drawAABB (const AABB &aabb)=0
	Draw a wire-frame axis-aligned box. More...

virtual void	setBlendMode (EBlendMode mode)=0
	Set the currently active blending mode. More...

virtual void	setCullMode (ECullMode mode)=0
	Set the currently active culling mode. More...

virtual void	setDepthTest (bool value)=0
	Activate or deactivate depth testing. More...

virtual void	setDepthMask (bool value)=0
	Activate or deactivate the writing of depth information. More...

virtual void	setColor (const Color3 &color, Float alpha=1.0f)=0
	Set the current fixed-function pipeline color. More...

virtual void	setColor (const Spectrum &spec, Float alpha=1.0f)=0
	Set the current fixed-function pipeline color. More...

virtual void	setClearDepth (Float depth)=0
	Set the depth value that is written by clear() More...

virtual void	setClearColor (const Color3 &color)=0
	Set the color value that is written by clear() More...

virtual void	clearTransforms ()=0
	Clear the view and projection transformations. More...

virtual void	flush ()=0
	Flush outstanding rendering commands. More...

virtual void	finish ()=0
	Completely finish outstanding rendering commands. More...

virtual void	checkError (bool onlyWarn=true)=0
	Check for any error indications. More...

Shader *	registerShaderForResource (const HWResource *res)

Shader *	getShaderForResource (const HWResource *res)
	Look up a shader by the associated HWResource object. More...

void	unregisterShaderForResource (const HWResource *res)
	Decrease the reference count of a shader. Deletes it when zero is reached. More...

virtual GPUGeometry *	createGPUGeometry (const Shape *mesh)=0
	Create a new GPU geometry object. More...

GPUGeometry *	registerGeometry (const Shape *shape)

bool	unregisterGeometry (const Shape *shape)
	Unregister a triangle mesh from the renderer. More...

void	setLogLevel (ELogLevel logLevel)
	Set the log level. More...

void	setWarnLogLevel (ELogLevel logLevel)
	Set the log level for warnings. More...

virtual void	debugString (const std::string &text)=0
	Send a debug string to the rendering backend. More...

virtual const Class *	getClass () const
	Retrieve this object's class. More...

Public Member Functions inherited from Object
	Object ()
	Construct a new object. More...

int	getRefCount () const
	Return the current reference count. More...

void	incRef () const
	Increase the reference count of the object by one. More...

void	decRef (bool autoDeallocate=true) const
	Decrease the reference count of the object and possibly deallocate it. More...

virtual std::string	toString () const
	Return a human-readable string representation of the object's contents. More...

Static Public Member Functions
static Renderer *	create (Session *session)

Static Public Member Functions inherited from Object
static void	staticInitialization ()
	Initializes the built-in reference count debugger (if enabled) More...

static void	staticShutdown ()
	Free the memory taken by staticInitialization() More...

Static Public Attributes
static Class *	m_theClass

Static Public Attributes inherited from Object
static Class *	m_theClass
	Pointer to the object's class descriptor. More...

Protected Member Functions
	Renderer (Session *session)
	Construct a new OpenI rendering interface. More...

virtual	~Renderer ()
	Virtual destructor. More...

Protected Member Functions inherited from Object
virtual	~Object ()
	Virtual private deconstructor. (Will only be called by ref) More...

Protected Attributes
ref< Session >	m_session

ref< Device >	m_device

ref< RendererCapabilities >	m_capabilities

std::map< const HWResource *, ShaderRecord >	m_shaders

std::map< const Shape , GPUGeometry >	m_geometry

bool	m_initialized

bool	m_borrowed

std::string	m_driverVendor

std::string	m_driverRenderer

std::string	m_driverVersion

ELogLevel	m_logLevel

ELogLevel	m_warnLogLevel

Detailed Description

Abstract renderer implementation.

Member Typedef Documentation

typedef std::pair<const GPUGeometry *, Matrix4x4> mitsuba::Renderer::TransformedGPUGeometry

Member Enumeration Documentation

enum mitsuba::Renderer::EBlendMode

Enumerator
EBlendNone	Blending turned off.
EBlendAlpha	Normal alpha blending.
EBlendAdditive	Additive blending.

enum mitsuba::Renderer::ECullMode

Possible culling modes.

Enumerator
ECullNone	No culling.
ECullFront	Front-face culling.
ECullBack	Back-face culling.

enum mitsuba::Renderer::EMatrixType

Matrices of the fixed function pipeline.

Enumerator
EProjection
EModelView

Constructor & Destructor Documentation

mitsuba::Renderer::Renderer ( Session * session )

protected

Construct a new OpenI rendering interface.

virtual mitsuba::Renderer::~Renderer ( )

protectedvirtual

Virtual destructor.

Member Function Documentation

virtual void mitsuba::Renderer::beginDrawingMeshes ( bool transmitOnlyPositions = false )

pure virtual

Set up the renderer for drawing triangle geometry.

Implemented in mitsuba::GLRenderer.

virtual void mitsuba::Renderer::blitQuad ( bool flipVertically )

pure virtual

Blit a screen-sized quad.

Implemented in mitsuba::GLRenderer.

virtual void mitsuba::Renderer::blitTexture	(	const GPUTexture *	texture,
		bool	flipVertically = `false`,
		bool	centerHoriz = `true`,
		bool	centerVert = `true`,
		const Vector2i &	offset = `Vector2i(0, 0)`
	)

pure virtual

Draw a quad using the given texture.

Implemented in mitsuba::GLRenderer.

virtual void mitsuba::Renderer::checkError ( bool onlyWarn = true )

pure virtual

Check for any error indications.

Implemented in mitsuba::GLRenderer.

virtual void mitsuba::Renderer::clear ( )

pure virtual

Clear the viewport.

Implemented in mitsuba::GLRenderer.

virtual void mitsuba::Renderer::clearTransforms ( )

pure virtual

Clear the view and projection transformations.

Implemented in mitsuba::GLRenderer.

static Renderer* mitsuba::Renderer::create ( Session * session )

static

virtual GPUGeometry* mitsuba::Renderer::createGPUGeometry ( const Shape * mesh )

pure virtual

Create a new GPU geometry object.

Implemented in mitsuba::GLRenderer.

virtual GPUProgram* mitsuba::Renderer::createGPUProgram ( const std::string & name )

pure virtual

Create a new GPU program object.

Implemented in mitsuba::GLRenderer.

virtual GPUSync* mitsuba::Renderer::createGPUSync ( )

pure virtual

Create a new synchronization object.

Implemented in mitsuba::GLRenderer.

virtual GPUTexture* mitsuba::Renderer::createGPUTexture	(	const std::string &	name,
		Bitmap *	bitmap = `NULL`
	)

pure virtual

Create a new GPU texture object.

Implemented in mitsuba::GLRenderer.

virtual void mitsuba::Renderer::debugString ( const std::string & text )

pure virtual

Send a debug string to the rendering backend.

This is mainly useful when an OpenGL trace is captured by a tool such as 'apitrace'.

Implemented in mitsuba::GLRenderer.

virtual void mitsuba::Renderer::drawAABB ( const AABB & aabb )

pure virtual

Draw a wire-frame axis-aligned box.

Implemented in mitsuba::GLRenderer.

virtual void mitsuba::Renderer::drawAll ( const std::vector< TransformedGPUGeometry > & geo )

pure virtual

Quickly draw all geometry that has been registered with the renderer.

Only transmits positions, hence this is mainly useful for shadow mapping.

Implemented in mitsuba::GLRenderer.

virtual void mitsuba::Renderer::drawEllipse	(	const Point &	center,
		const Vector &	axis1,
		const Vector &	axis2
	)

pure virtual

Draw an ellipse with the specified center and axes.

Implemented in mitsuba::GLRenderer.

virtual void mitsuba::Renderer::drawFilledRectangle	(	const Point2 &	a,
		const Point2 &	b
	)

pure virtual

Draw a filled rectangle between two specified points (2D)

Implemented in mitsuba::GLRenderer.

virtual void mitsuba::Renderer::drawFilledRectangle	(	const Point2i &	a,
		const Point2i &	b
	)

pure virtual

Draw a filled rectangle between two specified points (2D, integer coordinates)

Implemented in mitsuba::GLRenderer.

virtual void mitsuba::Renderer::drawLine	(	const Point &	a,
		const Point &	b
	)

pure virtual

Draw a line between two specified points.

Implemented in mitsuba::GLRenderer.

virtual void mitsuba::Renderer::drawLine	(	const Point2 &	a,
		const Point2 &	b
	)

pure virtual

Draw a line between two specified points (2D)

Implemented in mitsuba::GLRenderer.

virtual void mitsuba::Renderer::drawLine	(	const Point2i &	a,
		const Point2i &	b
	)

pure virtual

Draw a line between two specified points (2D, integer coordinates)

Implemented in mitsuba::GLRenderer.

virtual void mitsuba::Renderer::drawMesh ( const TriMesh * shape )

pure virtual

Send a triangle mesh to the renderer.

Implemented in mitsuba::GLRenderer.

virtual void mitsuba::Renderer::drawMesh ( const GPUGeometry * geo )

pure virtual

Send a triangle mesh to the renderer.

Implemented in mitsuba::GLRenderer.

virtual void mitsuba::Renderer::drawPoint ( const Point & p )

pure virtual

Draw a point.

Implemented in mitsuba::GLRenderer.

virtual void mitsuba::Renderer::drawPoint ( const Point2 & p )

pure virtual

Draw a point (2D)

Implemented in mitsuba::GLRenderer.

virtual void mitsuba::Renderer::drawPoint ( const Point2i & p )

pure virtual

Draw a point (2D, integer coordinates)

Implemented in mitsuba::GLRenderer.

virtual void mitsuba::Renderer::drawRectangle	(	const Point2 &	a,
		const Point2 &	b
	)

pure virtual

Draw a rectangle between two specified points (2D)

Implemented in mitsuba::GLRenderer.

virtual void mitsuba::Renderer::drawRectangle	(	const Point2i &	a,
		const Point2i &	b
	)

pure virtual

Draw a rectangle between two specified points (2D, integer coordinates)

Implemented in mitsuba::GLRenderer.

virtual void mitsuba::Renderer::drawText	(	const Point2i &	pos,
		const Font *	font,
		const std::string &	text
	)

pure virtual

Draw a line of text on the screen. The coordinates are specified in pixel coordinates, where the upper left corner is the origin

Implemented in mitsuba::GLRenderer.

virtual void mitsuba::Renderer::endDrawingMeshes ( )

pure virtual

Clean up the renderer after drawing triangle geometry.

Implemented in mitsuba::GLRenderer.

virtual void mitsuba::Renderer::finish ( )

pure virtual

Completely finish outstanding rendering commands.

Implemented in mitsuba::GLRenderer.

virtual void mitsuba::Renderer::flush ( )

pure virtual

Flush outstanding rendering commands.

Implemented in mitsuba::GLRenderer.

const RendererCapabilities* mitsuba::Renderer::getCapabilities ( ) const

inline

Return the renderer's capabilities.

virtual const Class* mitsuba::Renderer::getClass ( ) const

virtual

Retrieve this object's class.

Reimplemented from Object.

Reimplemented in mitsuba::GLRenderer, mitsuba::NSGLRenderer, mitsuba::WGLRenderer, and mitsuba::GLXRenderer.

virtual Matrix4x4 mitsuba::Renderer::getMatrix ( EMatrixType type ) const

pure virtual

Fetch the currently set modelview or projection matrix.

Implemented in mitsuba::GLRenderer.

Shader* mitsuba::Renderer::getShaderForResource ( const HWResource * res )

Look up a shader by the associated HWResource object.

virtual void mitsuba::Renderer::init	(	Device *	device,
		Renderer *	other = `NULL`
	)

virtual

Initialize the renderer. Optionally, an existing renderer instance can be provided as a second argument – this establishes a link between them to permit sharing of textures, programs, etc.

Reimplemented in mitsuba::GLRenderer, mitsuba::NSGLRenderer, mitsuba::WGLRenderer, and mitsuba::GLXRenderer.

virtual void mitsuba::Renderer::reconfigure ( const Device * device )

pure virtual

Reconfigure the renderer for a certain device (e.g. after a resize event)

Implemented in mitsuba::GLRenderer.

GPUGeometry* mitsuba::Renderer::registerGeometry ( const Shape * shape )

Register a triangle mesh with the renderer. This will transfer the associated geometry to the GPU, which accelerates later calls to drawMesh()

Shader* mitsuba::Renderer::registerShaderForResource ( const HWResource * res )

Register a shader with this renderer. Increases the reference count if it already exists

virtual void mitsuba::Renderer::setBlendMode ( EBlendMode mode )

pure virtual

Set the currently active blending mode.

Implemented in mitsuba::GLRenderer.

virtual void mitsuba::Renderer::setCamera	(	const ProjectiveCamera *	pCamera,
		const Point2 &	apertureSample = `Point2(0.5f)`,
		const Point2 &	aaSample = `Point2(0.5f)`,
		Float	timeSample = `0.5f`
	)

pure virtual

Configure the camera.

Implemented in mitsuba::GLRenderer.

virtual void mitsuba::Renderer::setCamera	(	const Matrix4x4 &	proj,
		const Matrix4x4 &	view
	)

pure virtual

Configure the camera (manual)

Implemented in mitsuba::GLRenderer.

virtual void mitsuba::Renderer::setClearColor ( const Color3 & color )

pure virtual

Set the color value that is written by clear()

Implemented in mitsuba::GLRenderer.

virtual void mitsuba::Renderer::setClearDepth ( Float depth )

pure virtual

Set the depth value that is written by clear()

Implemented in mitsuba::GLRenderer.

virtual void mitsuba::Renderer::setColor	(	const Color3 &	color,
		Float	alpha = `1.0f`
	)

pure virtual

Set the current fixed-function pipeline color.

Implemented in mitsuba::GLRenderer.

virtual void mitsuba::Renderer::setColor	(	const Spectrum &	spec,
		Float	alpha = `1.0f`
	)

pure virtual

Set the current fixed-function pipeline color.

Implemented in mitsuba::GLRenderer.

virtual void mitsuba::Renderer::setCullMode ( ECullMode mode )

pure virtual

Set the currently active culling mode.

Implemented in mitsuba::GLRenderer.

virtual void mitsuba::Renderer::setDepthMask ( bool value )

pure virtual

Activate or deactivate the writing of depth information.

Implemented in mitsuba::GLRenderer.

virtual void mitsuba::Renderer::setDepthTest ( bool value )

pure virtual

Activate or deactivate depth testing.

Implemented in mitsuba::GLRenderer.

void mitsuba::Renderer::setLogLevel ( ELogLevel logLevel )

inline

Set the log level.

virtual void mitsuba::Renderer::setMatrix	(	EMatrixType	type,
		const Matrix4x4 &	value
	)

pure virtual

Directly set the modelview or projection matrix.

Implemented in mitsuba::GLRenderer.

virtual void mitsuba::Renderer::setPointSize ( Float size )

pure virtual

Set the size of point primitives.

Implemented in mitsuba::GLRenderer.

void mitsuba::Renderer::setWarnLogLevel ( ELogLevel logLevel )

inline

Set the log level for warnings.

virtual void mitsuba::Renderer::shutdown ( )

virtual

Shut the renderer down.

Reimplemented in mitsuba::GLRenderer, mitsuba::NSGLRenderer, mitsuba::WGLRenderer, and mitsuba::GLXRenderer.

bool mitsuba::Renderer::unregisterGeometry ( const Shape * shape )

Unregister a triangle mesh from the renderer.

void mitsuba::Renderer::unregisterShaderForResource ( const HWResource * res )

Decrease the reference count of a shader. Deletes it when zero is reached.

Member Data Documentation

bool mitsuba::Renderer::m_borrowed

protected

ref<RendererCapabilities> mitsuba::Renderer::m_capabilities

protected

ref<Device> mitsuba::Renderer::m_device

protected

std::string mitsuba::Renderer::m_driverRenderer

protected

std::string mitsuba::Renderer::m_driverVendor

protected

std::string mitsuba::Renderer::m_driverVersion

protected

std::map<const Shape*, GPUGeometry *> mitsuba::Renderer::m_geometry

protected

bool mitsuba::Renderer::m_initialized

protected

ELogLevel mitsuba::Renderer::m_logLevel

protected

ref<Session> mitsuba::Renderer::m_session

protected

std::map<const HWResource*, ShaderRecord> mitsuba::Renderer::m_shaders

protected

Class* mitsuba::Renderer::m_theClass

static

ELogLevel mitsuba::Renderer::m_warnLogLevel

protected

The documentation for this class was generated from the following file:

include/mitsuba/hw/renderer.h

Classes

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
